Geometry2D nodes simplify creation of simple planar shapes. They include Arc2D/ArcClose2D, Circle2D, Disk2D, Polyline2D, Polypoint2D, Rectangle2D and TriangleSet2D. The supporting Chapter 10 slideset and course videos are available online via X3dGraphics.com. |
| X3D Scenes | Descriptions |
|---|---|
| Arc 2D | Example of Arc2D node showing semicircular arcs |
| Arc Close 2D | Example of ArcClose2D showing PIE or CHORD subsections of circular geometry. |
| Circle 2D | Example of Circle2D node showing a simple circular circumference. |
| Disk 2D | Example of Disk2D showing circular geometry with an optional center hole. |
| Polyline 2D | Example of Polyline2D showing multiple 2D line segments. |
| Polypoint 2D | Example of Polypoint2D showing a simple set of points. |
| Rectangle 2D | Example of Rectangle2D showing two simple polygonal shapes. |

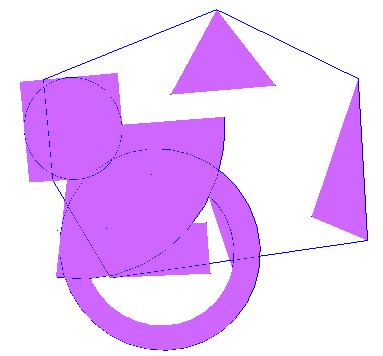

| Summary 2D | Example of all of the Geometry2D nodes for the X3D Book. |
| Triangle Set 2D | Example of TriangleSet2D showing multiple simple triangle shapes. |
http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter10-Geometry2D
|
|
|
|
|
|
Current and archived nightly builds and distributions of these examples are also available.
The X3D Resources: Examples page and Savage Developers Guide provide more information about the production of this archive.
