Viewpoint Slideshow: X3D for Web Authors, Chapter 10 - Geometry 2D

X3D for Web Authors, Chapter 10 - Geometry 2D

[1] Arc2D.x3d - Arc2D example

Geometry2D nodes simplify creation of simple planar shapes. They include Arc2D/ArcClose2D, Circle2D, Disk2D, Polyline2D, Polypoint2D, Rectangle2D and TriangleSet2D.

The supporting Chapter 10 slideset and course videos are available online via X3dGraphics.com.

X3D Geometry2D nodes are planar

X3D Scenes	Viewpoint Snapshots
Arc 2D	[1] Arc2D.x3d - Arc2D example [2] Arc2D.x3d - (default X3D view from 0 0 10)
Arc Close 2D	[3] ArcClose2D.x3d - ArcClose2D example [4] ArcClose2D.x3d - (default X3D view from 0 0 10)
Circle 2D	[5] Circle2D.x3d - Circle2D example [6] Circle2D.x3d - (default X3D view from 0 0 10)
Disk 2D	[7] Disk2D.x3d - Disk2D example [8] Disk2D.x3d - (default X3D view from 0 0 10)
Polyline 2D	[9] Polyline2D.x3d - Polyline2D example [10] Polyline2D.x3d - (default X3D view from 0 0 10)
Polypoint 2D	[11] Polypoint2D.x3d - Polypoint2D example [12] Polypoint2D.x3d - (default X3D view from 0 0 10)
Rectangle 2D	[13] Rectangle2D.x3d - Rectangle2D example [14] Rectangle2D.x3d - (default X3D view from 0 0 10)

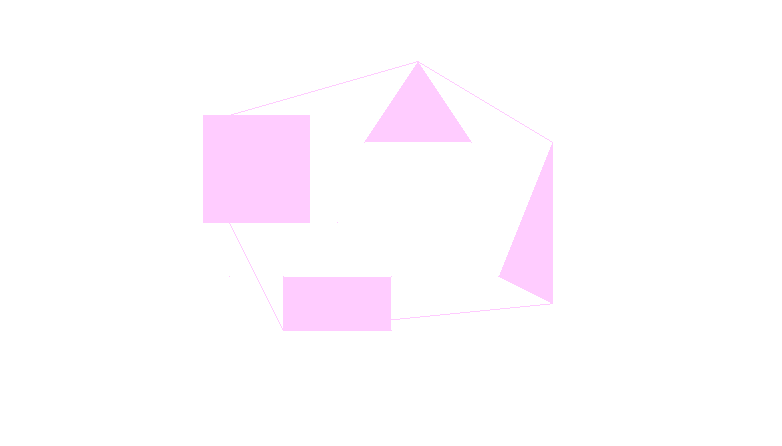

Summary 2D	[15] Summary2D.x3d - Summary 2D example [16] Summary2D.x3d - (default X3D view from 0 0 10)
Triangle Set 2D	[17] TriangleSet2D.x3d - TriangleSet2D example [18] TriangleSet2D.x3d - (default X3D view from 0 0 10)

http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter10-Geometry2D/viewpointSlideshow.html
